The Armory

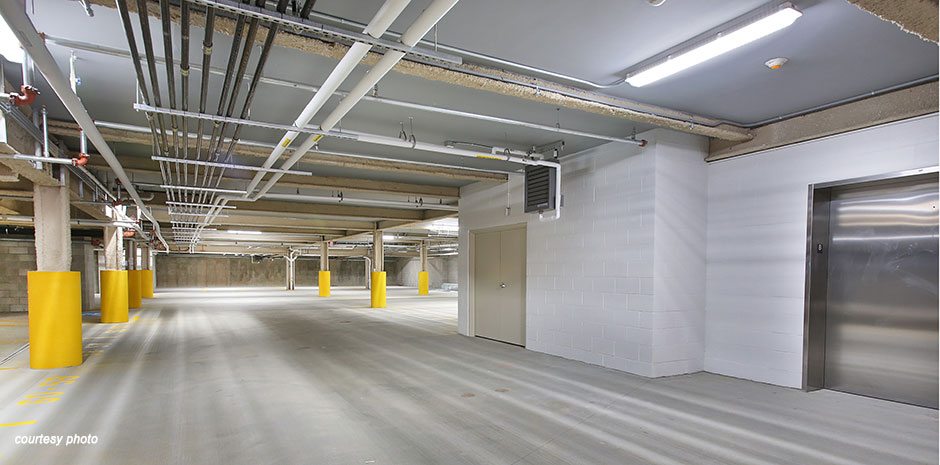

TFMoran Structural Engineers provided structural engineering services for Neshamkin French Architects for the renovation of the former Armory building in Charlestown, MA into 42 luxury condominiums with underground parking. Construction was completed by Eastridge Construction Management of North Reading, and the project was developed by Pat Keohane of C-Town Ventures LLC.

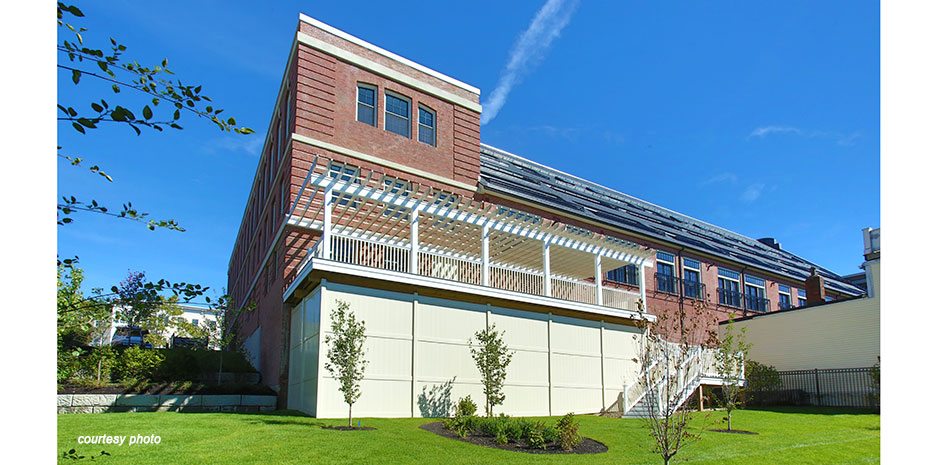

Previously underutilized, the Charlestown Battalion Armory has been revitalized through a sensitive program of historic restoration and innovative interior design. The architectural design, completed by Neshamkin French Architects Inc., preserved the exterior building envelope while the interior, including the structural system, was gutted and four new floors sensitively inserted to create 42 residential units.

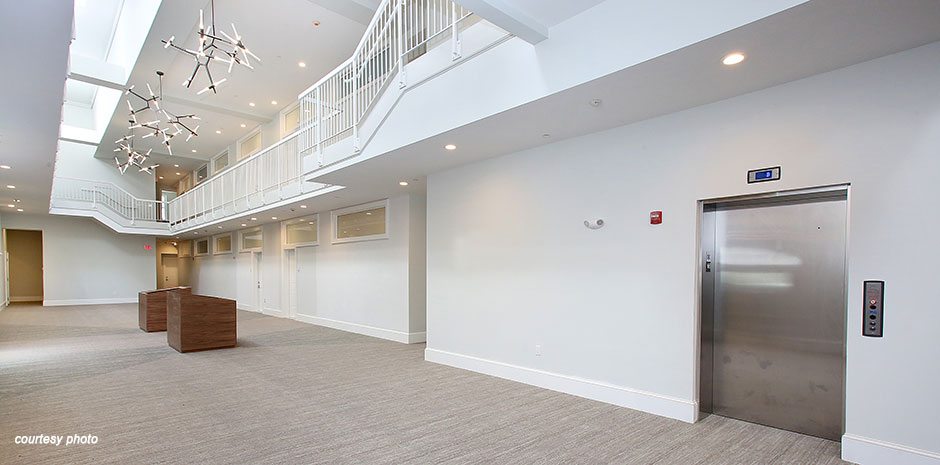

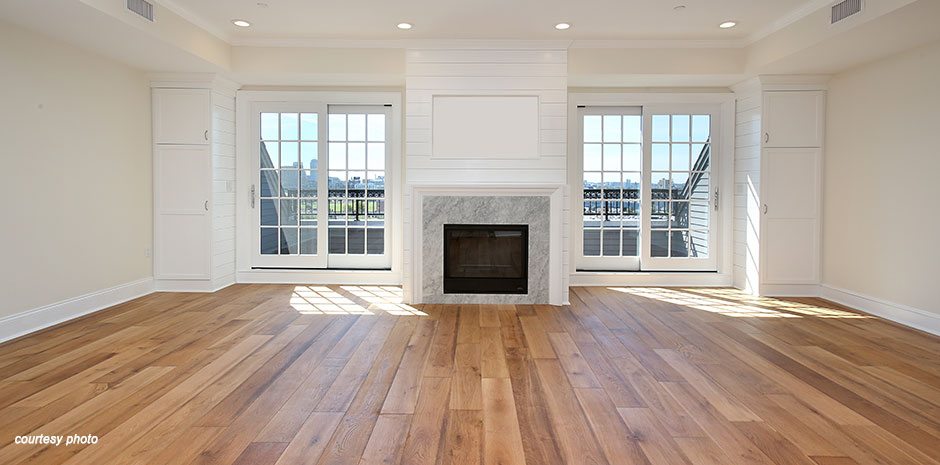

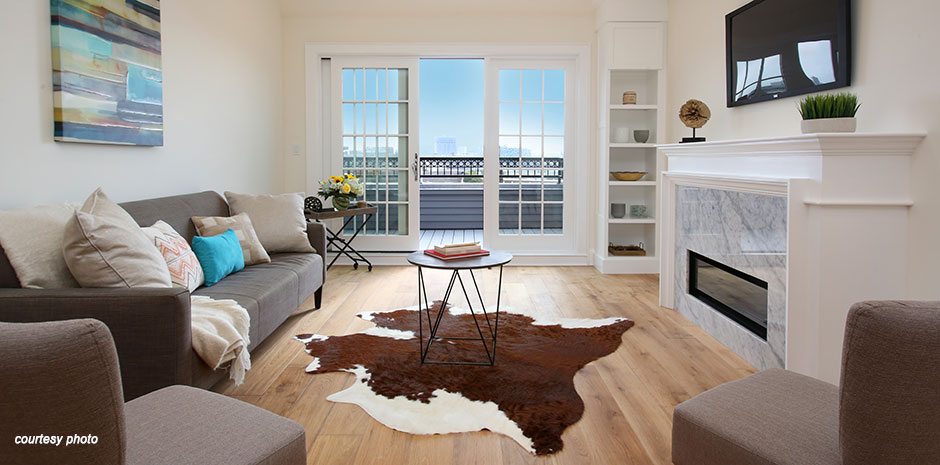

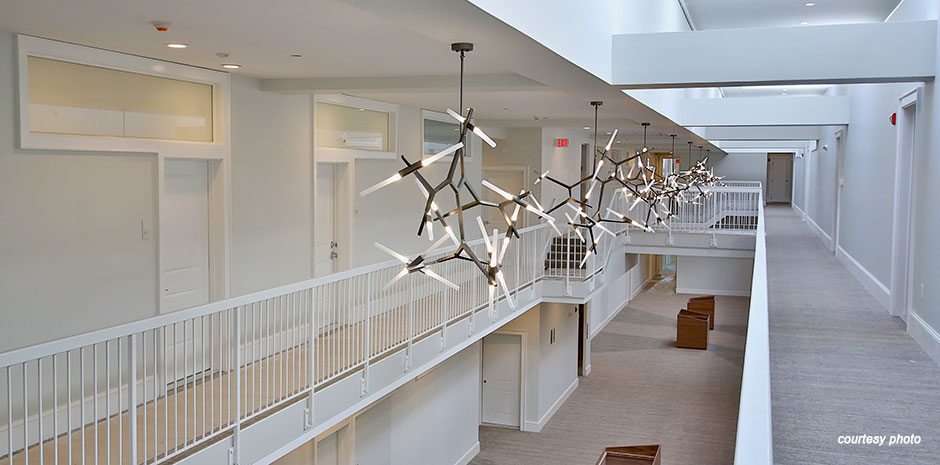

The design provides a variety of unit types, including traditional one-, two-, and three-bedroom flats; live/work units; and duplex penthouses featuring tremendous downtown Boston and Mystic River views. A central, two-story, interior atrium allowed the design to take full advantage of the building’s depth and provides natural light to the building interior.

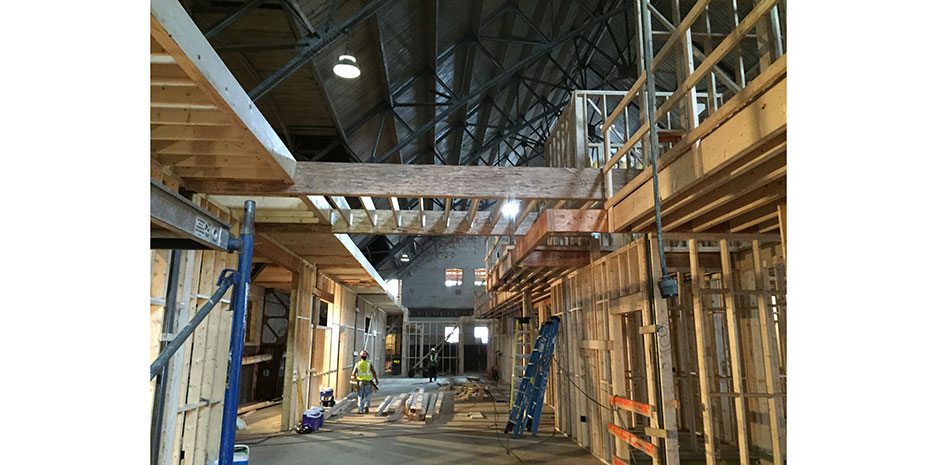

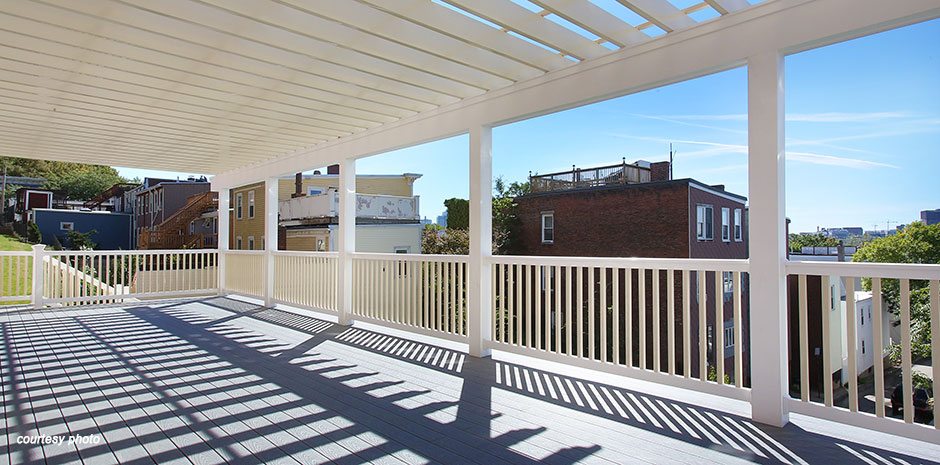

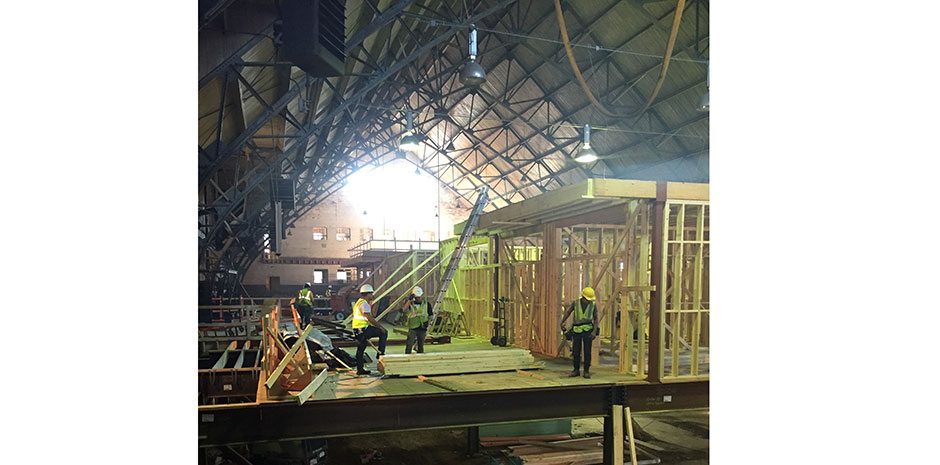

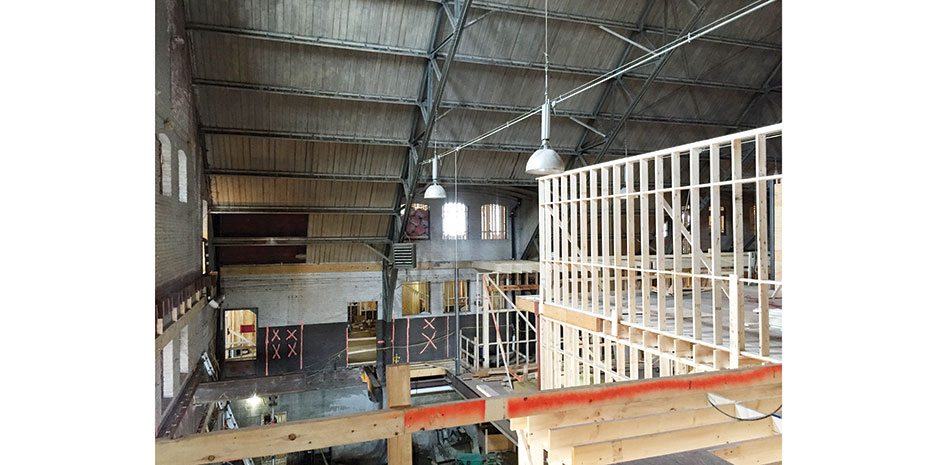

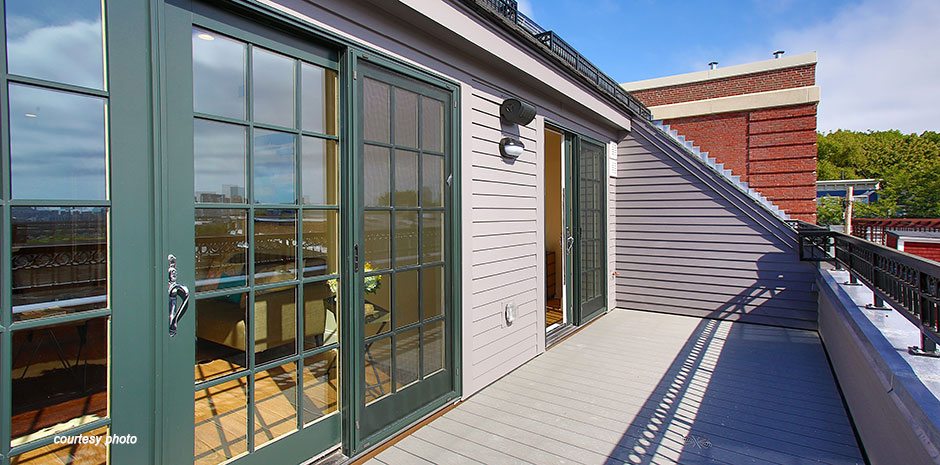

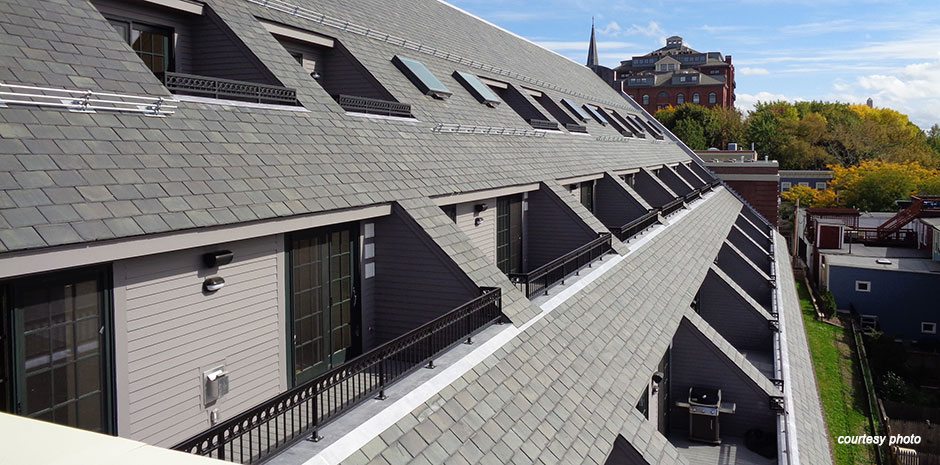

The original building, built in 1907, consisted of an A-frame style main structure surrounded on three sides by conventional two-story wood-framed structures supported on masonry walls. The steel truss structure in the main area provided large clear storage areas which were ideal for the original use of the building, but the depth and spacing of the trusses did not work with the proposed architectural layout. The new design required infilling the space with four new residential levels and new inset exterior balconies. To maintain the structure and allow the new levels to be installed without replacing the roof, the new residential levels were designed to support the roof and when completed allowed the steel trusses to be cut out and removed. This method of integrated construction, shoring, and demolition required close coordination between the design team, contractor, and developer.

  • Client: Neshamkin French Architects
  • Services: Structural Engineering
